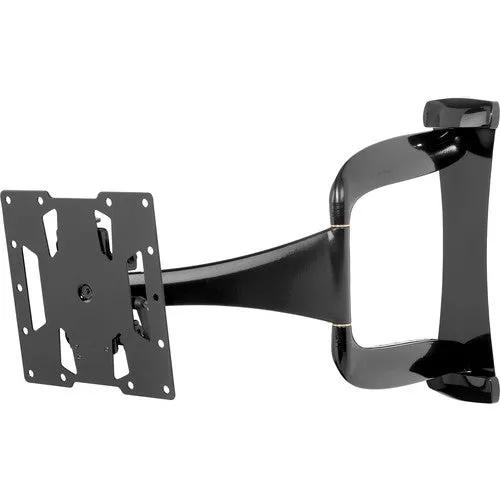

One of the thinnest wall arm mounts on the market, the Peerless-AV® DesignerSeries™ Ultra Slim Articulating Wall Mount is designed exclusively for ultra-thin displays. The SUA740P's One-Touch™ tilt mechanism provides effortless movement of the display for the perfect viewing experience, and vertical adjustment allows the display to be raised or lowered by ½" after installation to fine-tune the positioning. With a gloss black finish and internal cable management, the SUA740P provides a clean, professional look that matches any décor.
- Fits displays with VESA® mounting patterns 200 x 100 and 200 x 200mm
- Internal cable management provides clean, professional installation finish
- Up to ±90° of side-to-side swivel
- Added ±5° of roll for post-installation display leveling without the use of tools
- Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
- Arm retracts to 1.74" (44mm) and extends up to 24.74" (628mm) from wall
- One-Touch™ tilt mechanism allows adjustment of 15/-5° without the use of tools
Product Specifications
-
Minimum to Maximum Screen Size
32" to 43"
-
VESA Pattern
200x100, 200x200
-
Weight Capacity
60lb (27kg)
-
Color
Black
-
Finish
High Gloss
-
Distance from Wall
1.74 - 24.74" (44 - 628mm)
-
Mounting Pattern
200 x 200mm (7.87 x 7.87")
-
Roll
/-5
-
Security Features
Non-Security Hardware
-
Swivel Yaw
/-90
-
Tilt
15/-5
-
Product Dimensions
16.38x16.14x1.74-24.74" (416x410x44-628mm)
Package Specifications
-
Shipping Weight
13.25lb (6kg)
-
Ship Dimensions
19.5 x 3.25 x 21.25" (495.3 x 82.6 x 539.8mm)
