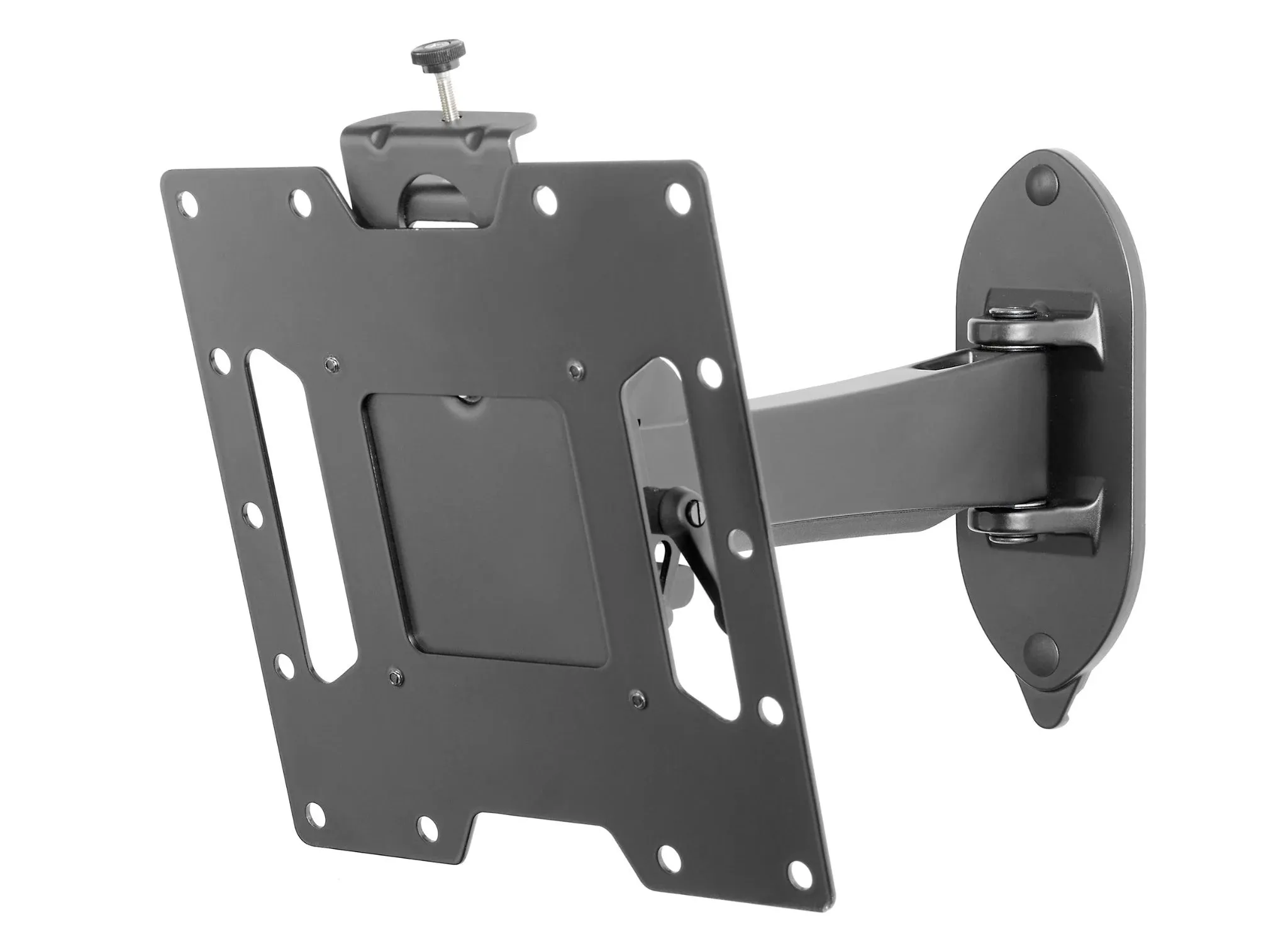

The SmartMount^® Pivoting Wall Mount series offers the most versatile installation features and mounting options. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SP740P, extend the display up to 12.41" (315mm) or fully-retract it to just 3.3" (77mm) from the wall for an improved viewing angle. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers 15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.

Features

• Accommodates 100 x 100, 200 x 100, or 200 x 200mm VESA® mounting patterns
• Retracts to hold display just 3.03" (77mm) from the wall
• ±90° of pivot allows for perfect display positioning
• Easy leveling ±5° after display installation
• Quick and easy, Hook-and-Hang™ one-person installation
• Landscape or portrait mounting options increases display versatility
• Includes all necessary wall and display attachment hardware
• Design is UL listed and tested to four times stated load capacity

Specifications

• Minimum to Maximum Screen Size: 22" to 43"

• VESA Pattern: 100 x 100, 200 x 100, 200 X 200mm

• Weight Capacity: 80lb (36kg)

• Color: Black

• Finish: HIgh Gloss

• Security Features: Non-Security Hardware

• Tilt: 15° / -5°

• Swivel Yaw: 90° / -90°

• Roll: 5° / -5°

• Distance from Wall: 3.03" - 12.41" (77 - 315mm)

• Product Dimensions:  15.35" x 10.15" x 3.03"-12.41" (390 x 258 x 77-315mm)

• Product Weight: 5.40lb (2.45kg)
