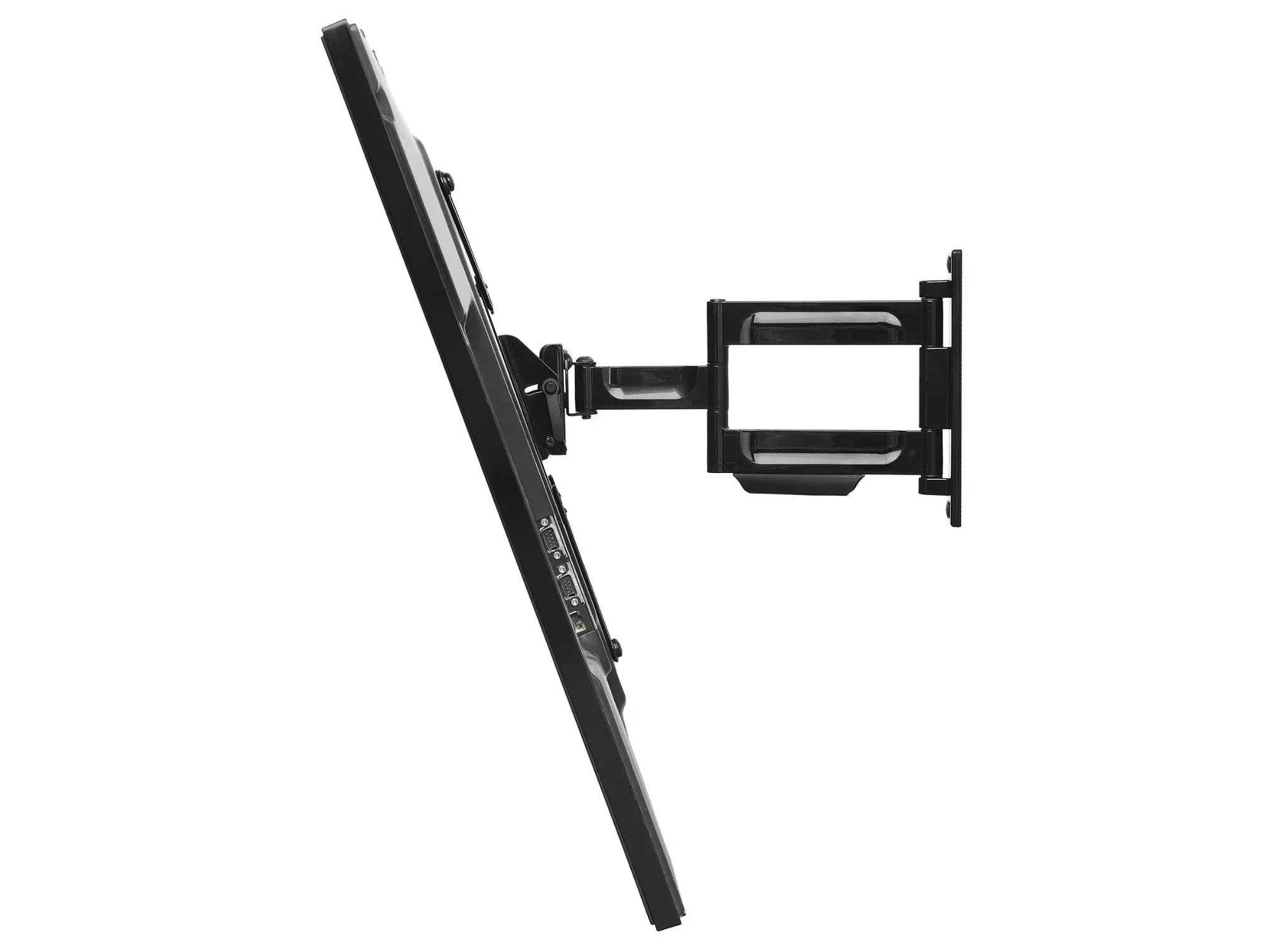

The Paramount™ series wall mounts provide versatile and multi-functional features. With PA746, extend the display up to 15.08" (383mm) or fully-retract it to just 2.81" (71mm) from the wall for the perfect viewing angle. The Hook-and-Hang™ system offers easy, one-person installation of the display. A ratcheting handle provides locking tilt capability for quick adjustments to the amount of tilt, reducing glare and optimizing the viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.

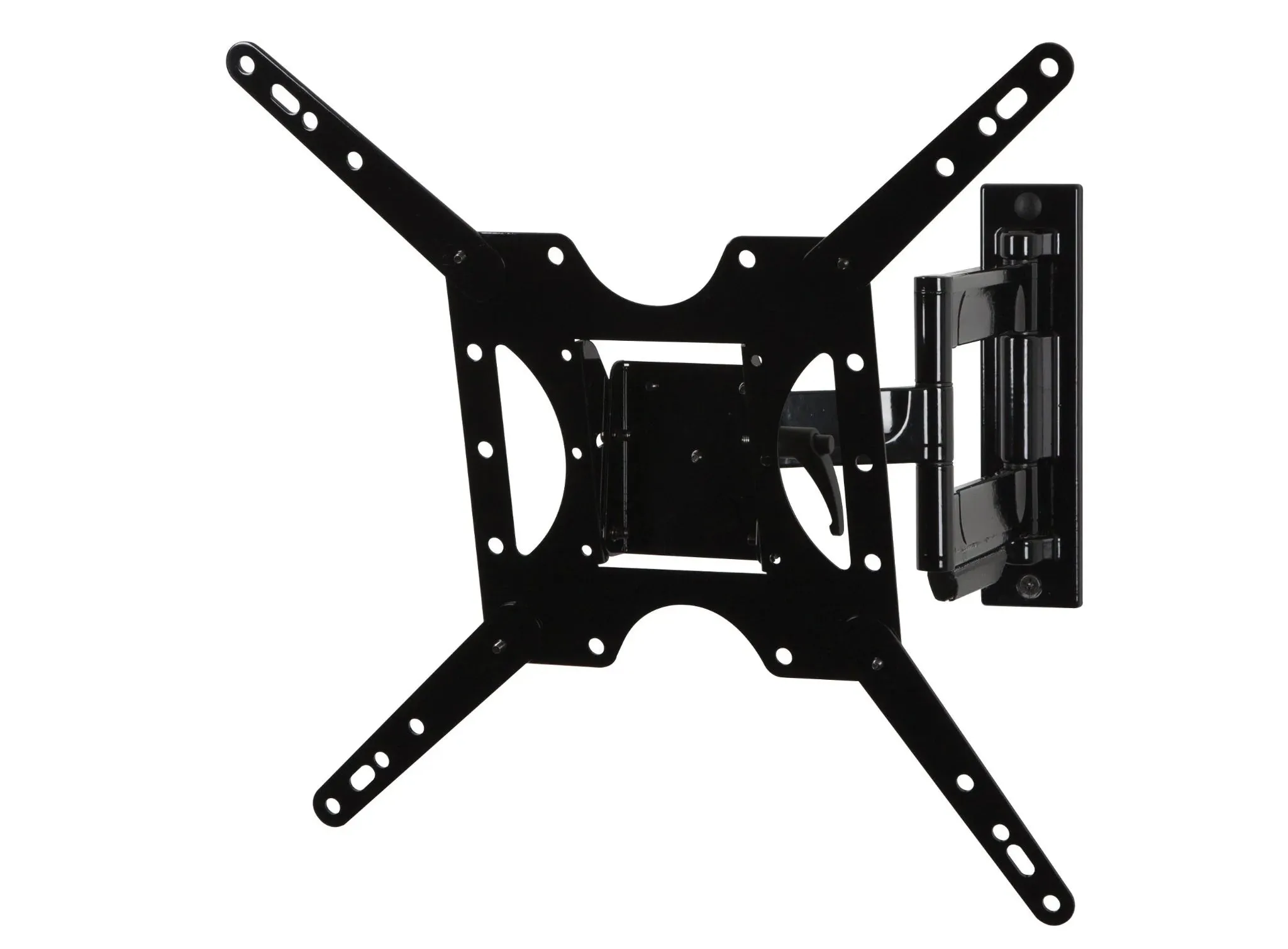

- Accommodates 100 x 100, 200 x 100, or 200 x 200, 300 x 200, 300 x 300, 400 x 300 and 400 x 400mm VESA® mounting patterns
- Extends 15.08" (383mm) from the wall
- Retracts 2.81" (71mm) to save space
- 15/-5° of tilt for optimal viewing angles
- ±5° of roll for post installation display leveling
- Up to ±90° of pivot
- Design is UL listed and tested to four times stated load capacity
- Hook-and-Hang™, one-person display installation
- Lock the display at any angle with the ratcheting handle

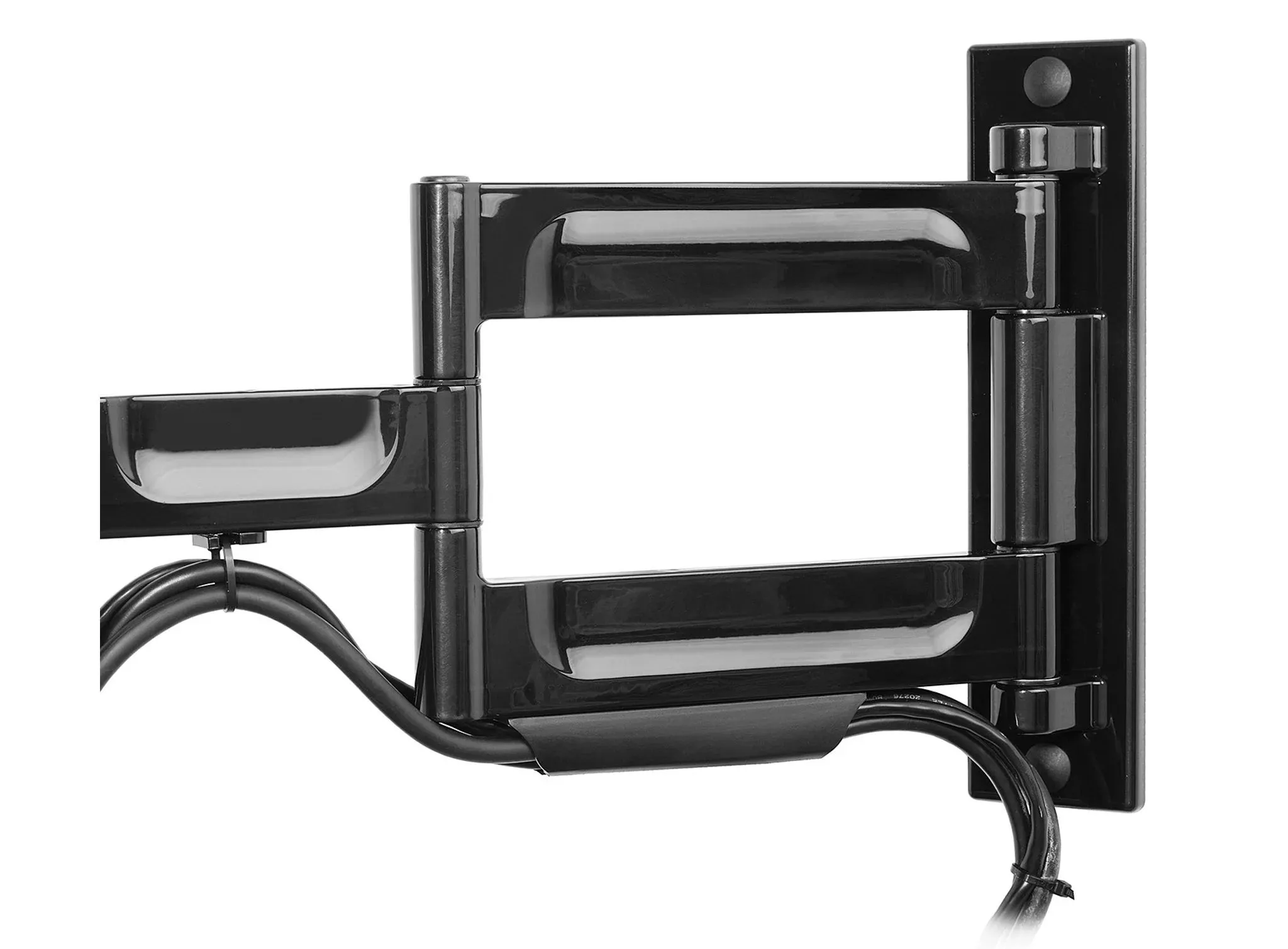

- Integrated cable management protects, contains and conceals cables for a clean, professional installation
- Mounts to wood stud, concrete, cinder or breeze block
Product Specifications
-
Minimum to Maximum Screen Size
32" to 50"
-
VESA Pattern
100, 200 x 100, 200, 300 x 200, 300, 400 x 300, 400
-
Mounting Pattern
100, 200 x 100, 200, 300 x 200, 300, 400 x 300, 400mm (15.75 x15.75")
-
Weight Capacity
80lb (36.3kg)
-
Color
Black
-
Finish
High Gloss
-
Security Features
Non-Security Hardware| Tilt
-
Roll
5/-5
-
Distance from Wall
2.32 - 14.74" (59 - 374mm)
-
Product Dimensions
16.65 x 16.65 x 2.81 - 15.08" (423 x 423 x 71 - 299mm)
Package Specifications
-
Shipping Weight
6.85lb (3.11kg)
-
Ship Dimensions
10.63 x 3.23 x 11.77" (270.0 x 82.0 x 299.0mm)
