Where a low cost mounting is required for the effective isolation of noise and vibration from machinery, particularly with speeds from about 1,000 RPM (16 R/s) upwards, and also from wall mounted machinery such as air conditioning/refrigeration condensers, neoprene mounts are the preferred choice because neoprene is more durable than natural rubber and cheaper synthetic compounds. The mounts are recommended for use in compression only, and are non seismic rated.

Features

• Moulded in oil-resistant Neoprene
• Zinc plated screws and washers are fitted
• Corrosion-free - metal parts embedded in Neoprene
• Non-skid base

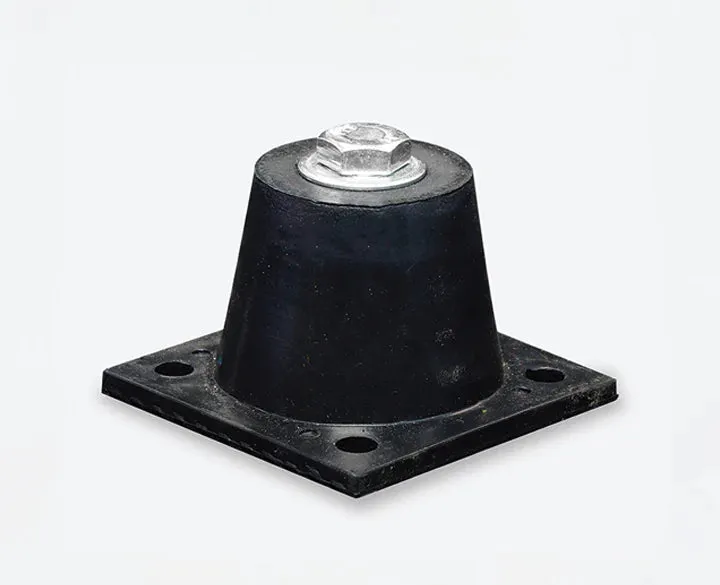

Double Deflection Neoprene Mounts

The base is 76mm square, providing excellent stability, and has 7.5mm holes at each of the four corners, offering a choice of fixing options. The NM-B are 50mm high and have M10 screws and washers fitted. They are available in compression loads from 20-300Kgs.
